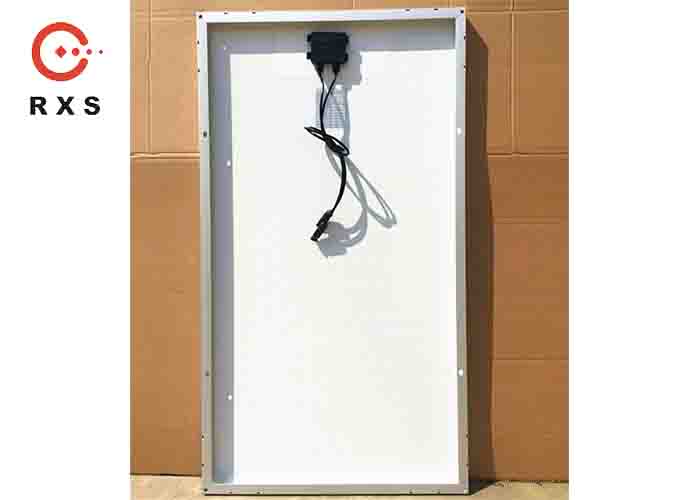

Rixin 10 Years Workmanship Warranty A Grade Poly 12v 155W Solar Panels For Off Grid System
High-efficiency photovoltaic module using silicon nitride coated monocrystalline silicon cells.
Solar cell: High efficiency crystalline solar cell. Even if under the weak light, the solar module
can produce maximum power output. Tempered glass: Anti-reflecting coating and high
transmission rate glass increases the power output and mechanical strength of solar module.
Main Features of Rixin 10 Years Workmanship Warranty A Grade Poly 12v 155W Solar Panels For Off Grid System
1. Over 25-year lifespan.
2. Available for charging 12V/24V battery.
3. Module dimension could be customized as per your requirements.
4. Suitable for solar street light, solar garden light, solar pump etc., on-grid or off-grid system.
5. A-grade cell, high stability and more power generation
6. Manufactured in a ISO14000 certificated production plant, the panels produced are with good quantities and various certificates, which are very reliable.
Performance parameters of Rixin 10 Years Workmanship Warranty A Grade Poly 12v 155W Solar Panels For Off Grid System
| Model | DBF155 |
| Dimension (L*W*H) mm | 1490*670*35mm |
| Weight (kg) | 10.88 |
| Cell dimension (mm) | 156*156 |
| Cell Nos | 36 (4*9) |
| Glass | 3.2mm low-iron tempered glass |
| Frame | Anodized aluminum alloy |
| Mounting holes | customized |
| Junction box protection level | IP65 |
| Cable length | customized |
| Connector | customized, MC4 compatible |
| Power tolerance | ±5% |
| Maximum power (Pm/Wp) | 170 |
| Maximum power voltage (Vmp/V) | 18.5 |
| Maximum power current (Imp/A) | 9.19 |
| Open circuit voltage (Voc/V) | 22.0 |
| Short circuit current (Isc/A) | 9.78 |
Drawing-sample(mm)
Quality Warranty
10-year materials&workmanship warranty
25-year linear power warranty
