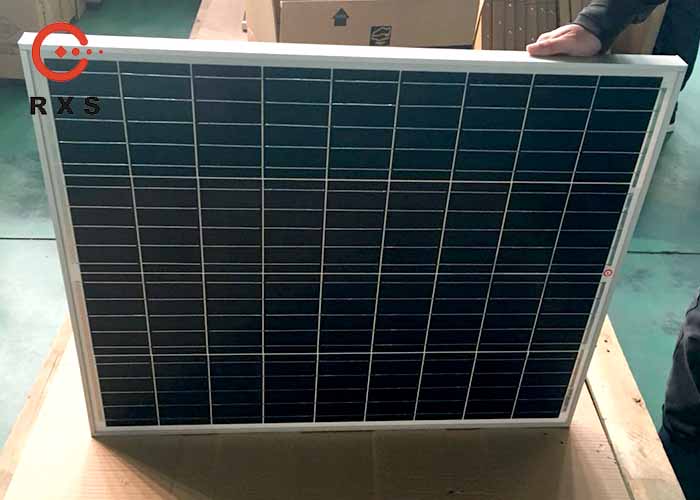

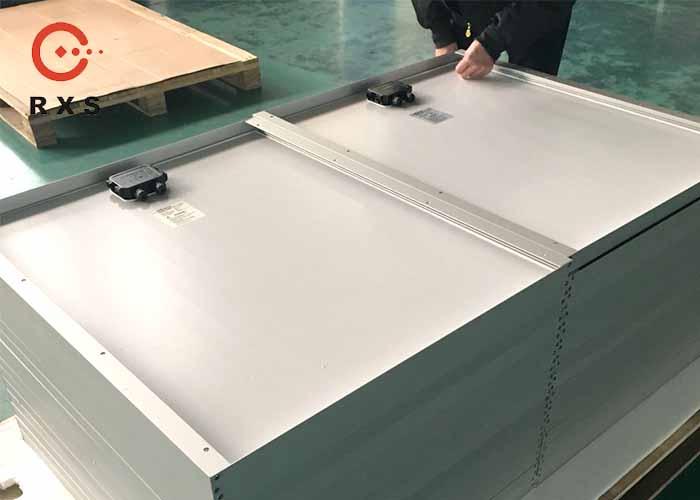

36 Cells Custom Solar Panel , 80W Polycrystalline Silicon Solar Panels

Name: 36 Cells Custom Solar Panel 80W Polycrystalline Silicon Solar Panels
Brand: Rixin
Price: 1 USD

China 36 Cells Custom Solar Panel , 80W Polycrystalline Silicon Solar Panels wholesale

Brand Name : Rixin

Model Number : MBF80

Certification : TUV, CE, ISO9001, ISO14001, OHSAS18000

Place of Origin : Wuhan, China

MOQ : 100PCS

Price : Negotiable

Payment Terms : T/T

Supply Ability : 500MW/year

Delivery Time : 15 working days

Packaging Details : cartons/wooden cases

Power : 80W

Dimension : 780*670*35mm

Cells : 36 Cells

Life span : 25 years

Name : polycrystalline framed solar panel

Contact Now

polycrystalline framed solar panel / 80W / 36 cells / 12V

Main Features of polycrystalline framed solar panel

Solar Cell
* Anti PID
* High Efficiency PV Cells
* Appearance Consistency
* Color sorting ensure consistent appearance on each module

Humanized design

* More protection with practical and effective design
* Prevent the aluminum frame from scratching the hand
* Using the rain to clean dirt remaining on the solar module

Performance parameters

Model	MBF80
Dimension (LWH) mm	78067035
Weight (kg)	5.87
Cell dimension (mm)	156*78
Cell Nos	36 (4*9)
Glass	3.2mm low-iron tempered glass
Frame	Anodized aluminum alloy
Mounting holes	customized
Junction box protection level	IP65
Cable length	customized
Connector	customized, MC4 compatible
Power tolerance	±5%
Maximum power (Pm/Wp)	80
Maximum power voltage (Vmp/V)	18.5
Maximum power current (Imp/A)	4.32
Open circuit voltage (Voc/V)	22.0
Short circuit current (Isc/A)	4.61

Drawing-sample(mm)
36 Cells Custom Solar Panel , 80W Polycrystalline Silicon Solar Panels

Quality Warranty
10-year materials&workmanship warranty
25-year linear power warranty

36 Cells Custom Solar Panel , 80W Polycrystalline Silicon Solar Panels
