Monocrystalline 355W PERC PV Module Anti PID Performance Easy Installation

Name: Monocrystalline 355W PERC PV Module Anti PID Performance Easy Installation
Brand: Rixin
Price: 1 USD

China Monocrystalline 355W PERC PV Module Anti PID Performance Easy Installation wholesale

Brand Name : Rixin

Model Number : DBG355(P)

Certification : TUV, CE, ISO9001, ISO14001, OHSAS18000

Place of Origin : Wuhan, China

MOQ : 840PCS/HQ

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 3GW/YEAR

Delivery Time : 15 working days

Packaging Details : 25pcs/pallet, 22pallets/40HQ, 550pcs/40HQ

Power : 355W

Dimension : 1956*992*40mm

Efficiency : 18.2%

Life span : 25 years

Contact Now

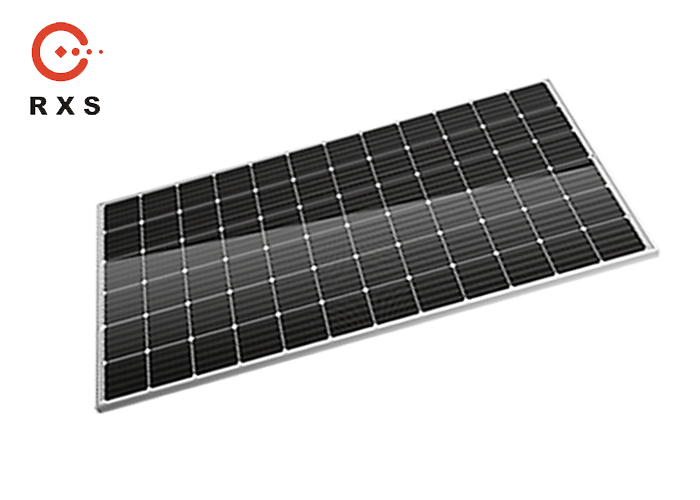

Perc monocrystalline framed solar panel / 355W / 72cells / 24V
solar panel is made up of mono-crystalline silicon solar cells in series with high efficiency, anti-corrosion, low iron tempered glass with high light transmittance and high strength, anti-aging , high flame resistant back sheet and anodic oxidation of aluminum alloy frame. The module has the advantages of high efficiency, long service life, easy to install as well as high wind and hail impact resistance.
Main Features
1. Positive power tolerance (0~+5W) guaranteed.
2. High module conversion efficiency.
3. Low LID.
4. Better energy yield with excellent low irradiance performance and temperature coefficient.
5. Adaptable to harsh environment: passed rigorous salt mist and ammonia tests.
6. Robust frame(40mm) withstands mechanical loading of 5400Pa for snow load on front and 2400Pa for wind load on rear side.

Electrical performance parameters

Electrical performance parameters
STC (AM1.5, 1000W/m², cell temperature 25℃)
Model	DBG355(P)
Maximum power (Pm/Wp)	355
Maximum power voltage (Vmp/V)	39.0
Maximum power current (Imp/A)	9.10
Open circuit voltage (Voc/V)	47.7
Short circuit current (Isc/A)	9.63
Module efficiency (%)	18.2
Normal operating cell temperature (NOCT)	45±2℃
Temperature coefficient of Voc	-0.30%/℃
Temperature coefficient of Isc	0.059%/℃
Temperature coefficient of Pm	-0.39%/℃
Power tolerance (W)	0~+5

General performance parameters

Mechanical performance parameters
Module dimension (LWH) (mm)	195699240/45
Cell dimension(mm)	156.75*156.75 PERC mono
Module weight (kg)	23
Cable	cable section-4mm² length-900mm
Cell Nos & array	72(6*12)
Packing	25pcs/pallet, 22pallets/40HQ, 550pcs/40HQ
Quality parameters
Module working temperature range (℃)	-40~+85
Maximum system voltage (V Dc)	1000
System maximum protection current (A)	15
Maximum wind loads/maximum snow loads (Pa)	2400/5400
Hot-spot resistance	100% hot-spot free

Drawing(mm)

Quality Warranty
10-year materials&workmanship warranty
25-year linear power warranty
