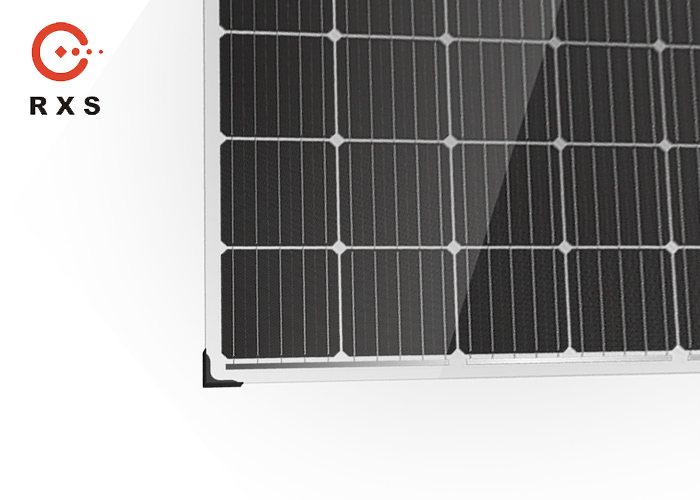

108cells Half Cell Standard Solar Panel Easy Installation With High Power Output
Main Features
Dual glass design removes the possibility of potential induced degradation (PID) and the panel can withstand high humidity, high temperatures, sandstorms, ultraviolet and corrosion, all of which makes the dual glass module can be deployed in more harsh environment.
1. High power output
30 year linear performance warranty, more than 30% additional power gain.
2. Zero LID & PID
No LID, more power generation.
No PID, stable power generation.
3. Fire safety performance
Higher fire safety class to minimize fire risks.
4. Outstanding module performance
Higher power output, even under low light conditions.
Excellent low irradiation performance and below -0.38% /℃ temperature coefficient of Power.
5. Wider applications & more flexible installed angle
No water-permeability and high wear-resistance, can be widely used in high-humid, strong wind&sand areas and not limited to traditional slope installation.
Electrical performance parameters
| Model | DDP315(K) | DDP320(K) | DDP325(K) |
| Maximum power(Pm/Wp) | 315 | 320 | 325 |
| Maximum power voltage(Vmp/V) | 29.3 | 29.4 | 29.5 |
| Maximum power current(lmp/V) | 10.75 | 10.88 | 11.00 |
| Open circuit voltage(Voc/V) | 35.9 | 36 | 36.1 |
| Short circuit current(Isc/A) | 11.54 | 11.60 | 11.66 |
| Module efficient(%) | 19.0 | 19.3 | 19.6 |
Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient temperature=25℃,AM=1.5
Mechanical performance parameters
| Cell Nos & array | Mono half-cut cells 108 (6*9*2) |
| Appearance color | Black |
| Cable | 4m㎡ negetive1000mm,positive1000mm |
| Module weight (kg) | 19 |
| Module dimension (L*W*H)(mm) | 1600*1036*5mm |
| Packing | 33pcs/pallet |
| Power optimizer matching form | 2 modules equipped with 1 optimizer |
Quality parameters
| Module working temperature range (℃) | -40~ +85 |
| Power tolerance(W) | 0~+5 |
| Maximum system voltage(V) | DC1500 |
| System maximum protection current(A) | 20 |
| NOCT(℃) | 45±2 |
| Front/rear static loads(Pa) | 2400 /2400 |
| Junction box/Connector | Ip68,split / MC4 compatible |
Temperaturecoefficient(STC)
| Temperature coefficient of Voc | -0.3%/℃ |
| Temperature coefficient of Isc | +0.06%/℃ |
| Temperature coefficient of Pm | -0.39%/℃ |
| Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient temperature=25℃,AM=1.5 |
Quality warranty
12-year material & workmanship warranty
30-year linear power warranty
Frame
1) High quality, strictly quality inspection during production and whole inspection before package
2) Hundreds of standard designs can be available and supplied
3) Simple and easy installation
4) High brightness and hardness
5) Strong coated adhesion
6) Anti-scratch, smoothness
Drawing(mm)
Quality Warranty
10-year materials&workmanship warranty
30-year linear power warranty
